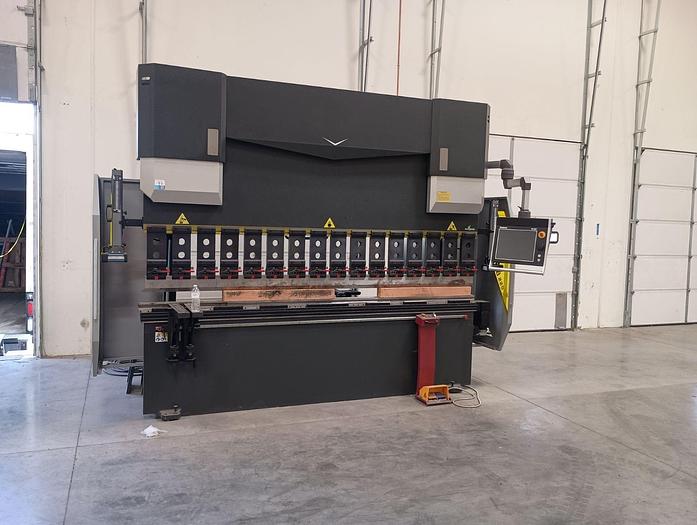

2021 LZK SPB-175T/3200

2021 LZK SPB-175T/3200

$165,000 (USD)

Available quantity:1

orCall +1 (925) 256-8111

Description

LZK CNC Model: SPB-175T/3200, Vintage: 2021, 175 ton capacity, 380v, 50 hz. Comes with 2 DSP lasers.


More details on the press brake...


175T CNC Press Brake with DA-69T CNC, 8+1 Axis (X1, X2, Y1, Y2, R1, R2, Z1, Z2, and Mechanical Crowning) - Demo Machine including: Pressing Force - 175 Tons, Maximum Bending Length - 3200mm (10.49 feet), Distance Between Frames - 2600mm (8.53 feet), Max Opening Height - 480mm (18.89 inches), Slide Stroke - 200mm (7.87 inches), Throat Depth - 400mm (15.74 inches), Approach Speed - 110-220 mm/sec (4.3 to 8.6 inches/sec), Working Speed - 10 mm/sec (.39 inches/sec), Return Speed - 110-180 mm/sec (4.3 to 7.1 inches/sec), X-Axis Back Gauge Stroke - 600 mm (23.6 inches), Y1, Y2 Axis Precision - 0.01mm, X1, X2, Y1, Y2, R1, R2, Z1, Z2 Axis Precision - 0.05mm/m, Delem DA-69T Controller, Schneider Electrical Components, STARS Servo Main Motor, Nanjing Estun Servo Motor and Drive, German BAUSER and Busak+Shamban Sealing Ring, German Bosch Rexroth Hydraulic System, German ECKERLE Bi-directional Gear

 Pump, German EMB Oil Tube Connector, Stealth Front and Back Safeguard, HIWIN Ball Screw and Linear Guide Rail Back-gauge, Taifeng Oil Cylinder, Stealth Double-sided Fast Clamp, Mechanical Deflection Compensation, Italian GIVI Grating Ruler, One Set of Standard Dies - 42CrMo, Length x Width x Height - 3850 x 2000 x 2700 mm (151.57 x 78.74 x 106.30 inches), Weight - 22,000 pounds, Input voltage 208/220 3phase, 1 Year Machine War.

Specifications

ManufacturerLZK
ModelSPB-175T/3200
Year2021
ConditionUsed
