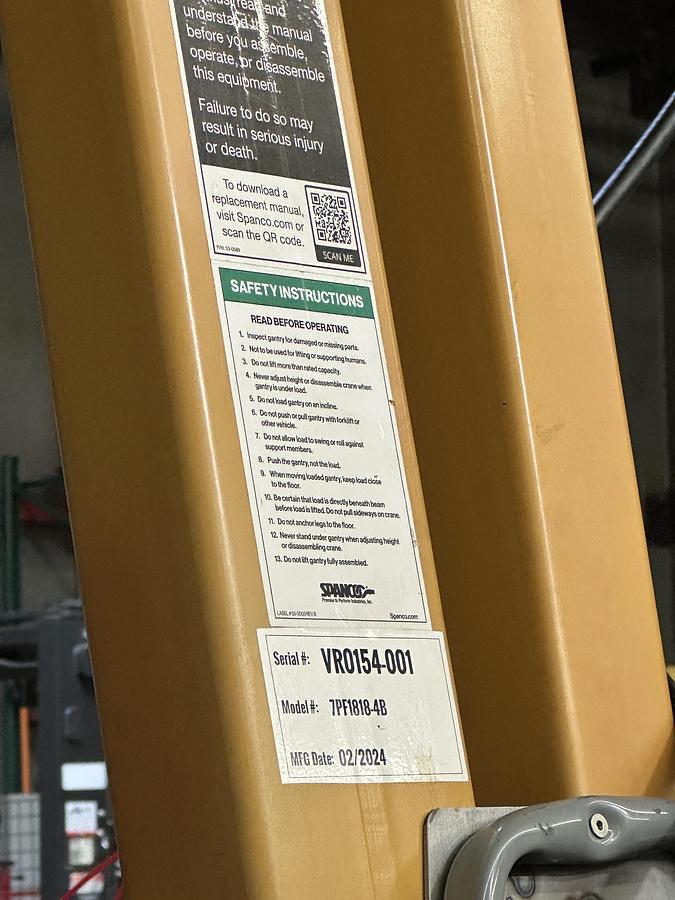

Used SPANCO GANTRY, MODEL #7PF1818 MANUAL PF SERIES GANTRY CRANE STEEL FIXED HEIGHT AND SPAN Capacity: 15000 lbs Overall Span: 18' - 0'' Clear Span: 15' - 0'' Height Under Beam: 18' - 0'' Overall Height: 19' - 6'' **(Hold)** Tread Width: ± 6' - 8'' Beam Size: S18X54.7#with cap channel Casters: 12'' Polyurethane Tread W/4 Position Swivel Locks Flange Width: 6" End of Gantry Load: 18812 lbs Load per Wheel: 9406 lbs Estimated Weight (Each): 3125 lbs Load per Wheel: 9406 lbs Coating & Painting: PAINT, SPRAY YELLOW ELEPHANT DAM-7.5-20-3-460-60 Elephant DAM Series Electric Chain Hoist w/ Motorized Trolley Capacity: 7.5 ton metric tons (16,500 lbs.) Chain Length: 20' Pendant Length: 18' No. of Falls: 3 Lifting Speed: 7 FPM 3 Phase - 460v Only - 60Hz Lug mounted to MAS Trolley Flange Range: 5.00" ~ 7.00"" Traversing Speed: 39 FPM Includes E-Stop Pendant and Chain Container Elephant JAPAN -ASME H3 MOTOR - CORROSIVE RESISTANT LOAD CHAIN - JIS / ISO M5 - FEM 2m - IP54 HOIST PROTECTION - IP65 NEMA 4X PENDANT PROT.
Details
SPANCO GANTRY, MODEL #7PF1818 ELEPHANT DAM-7.5-20-3-460-60
