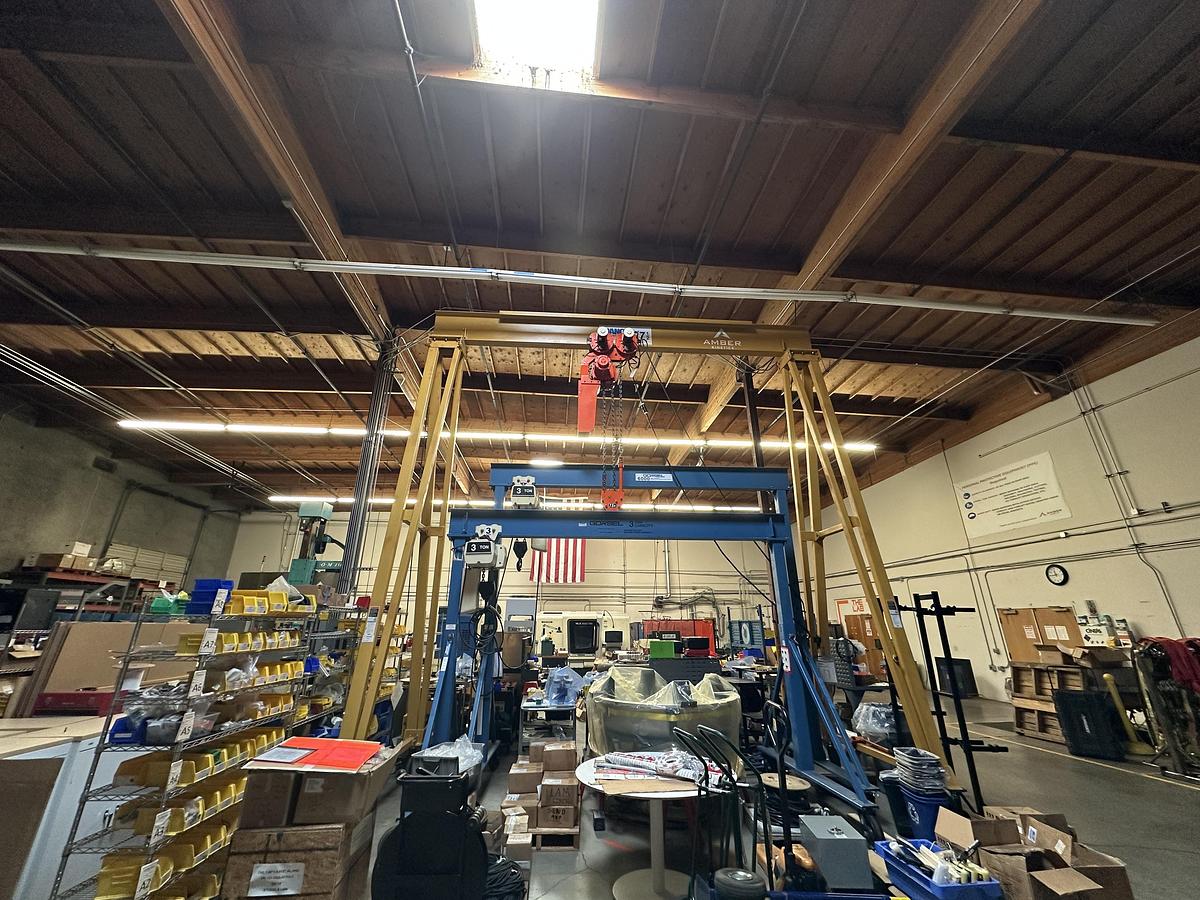

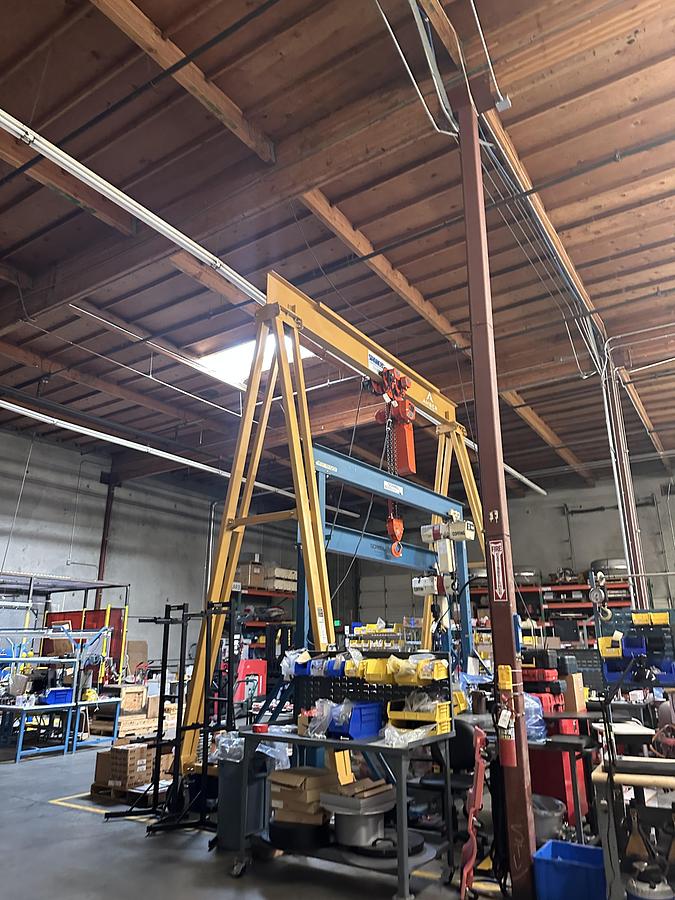

SPANCO GANTRY, MODEL #7PF1818 ELEPHANT DAM-7.5-20-3-460-60

SPANCO GANTRY, MODEL #7PF1818

MANUAL PF SERIES GANTRY CRANE STEEL

FIXED HEIGHT AND SPAN

Capacity: 15000 lbs

Overall Span: 18' - 0''

Clear Span: 15' - 0''

Height Under Beam: 18' - 0''

Overall Height: 19' - 6'' **(Hold)**

Tread Width: ± 6' - 8''

Beam Size: S18X54.7#with cap channel

Casters: 12'' Polyurethane Tread W/4 Position Swivel

Locks

Flange Width: 6"

End of Gantry Load: 18812 lbs

Load per Wheel: 9406 lbs

Estimated Weight (Each): 3125 lbs

Load per Wheel: 9406 lbs

Coating & Painting: PAINT, SPRAY YELLOW

ELEPHANT DAM-7.5-20-3-460-60

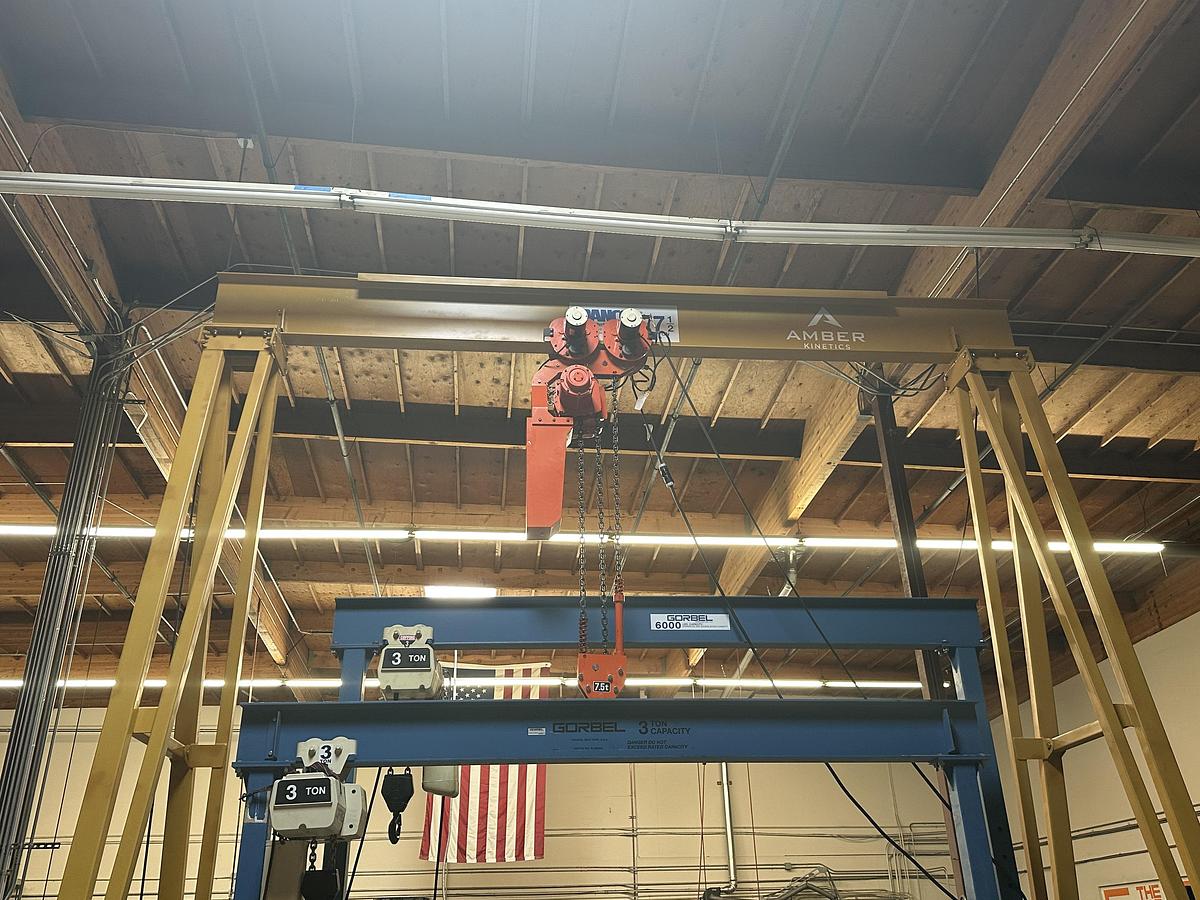

Elephant DAM Series Electric Chain Hoist w/

Motorized Trolley

Capacity: 7.5 ton metric tons (16,500 lbs.)

Chain Length: 20'

Pendant Length: 18'

No. of Falls: 3

Lifting Speed: 7 FPM

3 Phase - 460v Only - 60Hz

Lug mounted to MAS Trolley

Flange Range: 5.00" ~ 7.00""

Traversing Speed: 39 FPM

Includes E-Stop Pendant and Chain Container

Elephant JAPAN

-ASME H3 MOTOR

- CORROSIVE RESISTANT LOAD CHAIN

- JIS / ISO M5

- FEM 2m

- IP54 HOIST PROTECTION

- IP65 NEMA 4X PENDANT PROT.
