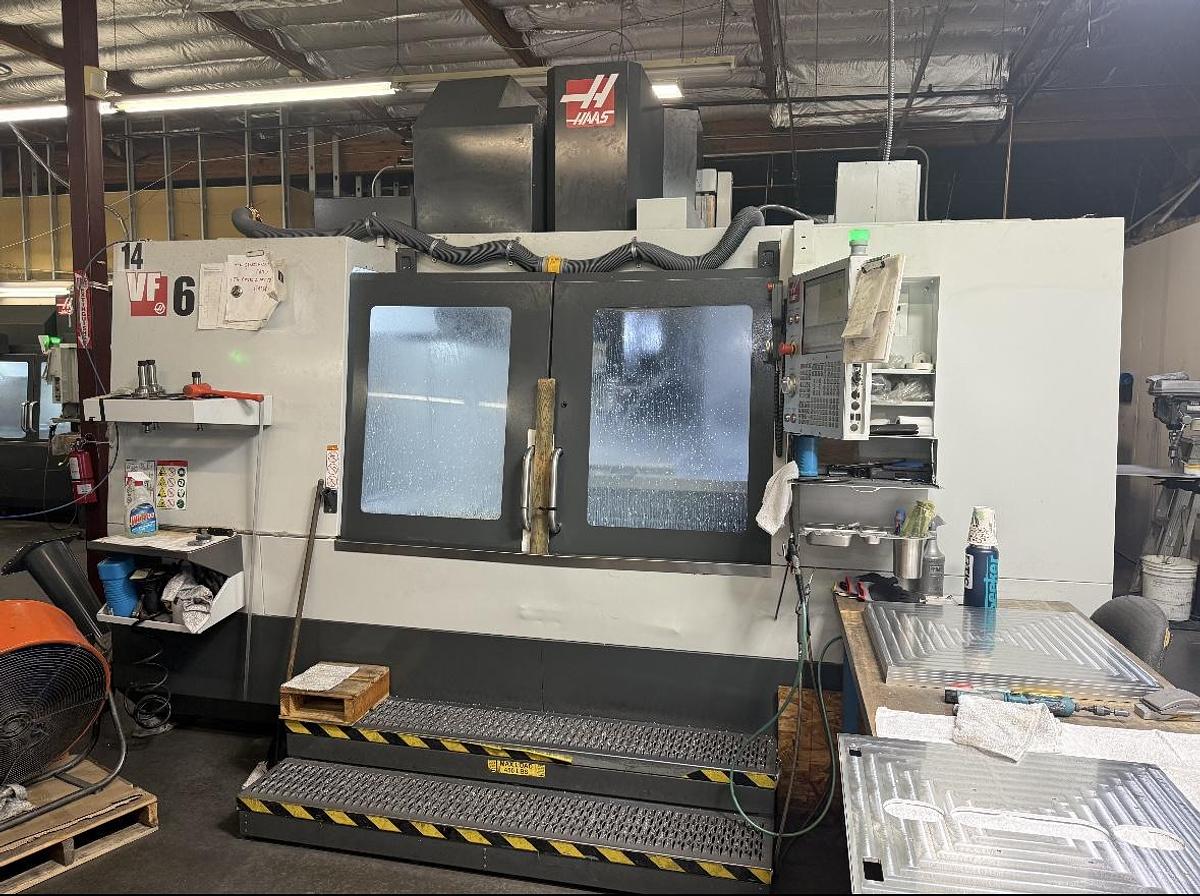

2022 Haas Mdl. VF6/50 CNC Vertical Machining Center

2022 Haas Mdl. VF6/50 CNC Vertical Machining Center

• High-Performance 10,000-rpm Spindle, 50 taper, 60 hp (44.7 kW) vector drive, geared head;

requires balanced toolholders with G2.5 rating above 7000 rpm.

• OPTION, HIGH SPEED MACHINING - CODE ONLY
• Through-Spindle Coolant, 300 psi (21 bar). Provides high-pressure coolant directly through

the cutting tool. Requires 3-phase power. Note: TSC cannot be installed in the field unless the

TSC-READY option is ordered with the machine.

• Machine Anchoring Kit; anchoring straps, hardware, tube brush, 5/8" hammer drill bit, and

machine anchoring template.

• Chip Tray Filter Kit; supplemental chip strainer kit keeps chips from entering the coolant

system. Includes a 200-micron filter and metal chip tray basket.

• The Haas 4th-axis drive allows the use of a fully integrated 4th-axis Haas rotary table or

indexer for multi-sided machining.

• Wireless Intuitive Probing System; Renishaw. Includes the Haas Visual Programming

System, macros, spindle orientation, and coordinate rotation and scaling.
